                                                  Filter Disc Mesh Technical Parameters Craft lever
The many of client for enquiry the Filter Disc mesh Products,Not have enough information and DWG drawing for inquiry and test sample order many times .For lost to much time and energy,The gas and liquid,Hydraulics oil,Actuators,Valves,Pneumatic and Hydraulic Control Systems Pumps,Servo,Secondary filters and Air  of Filtration systems Stilling dirty,not well. So We known more the Technical Parameters is very important and Craft lever.  To got the Excellent quality products and  suitable to themself machines and parts .

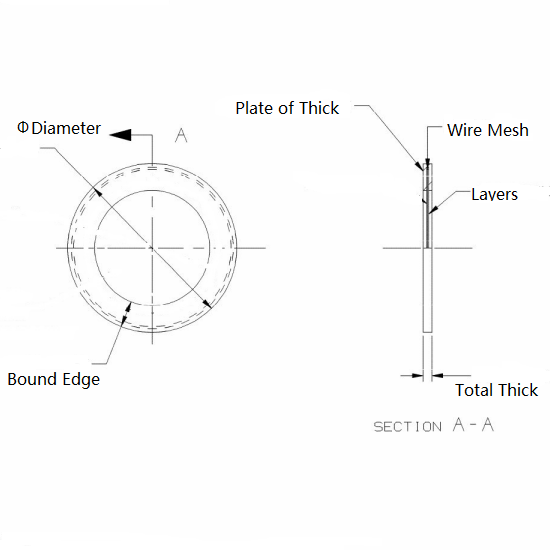

Filter Disc Mesh of  Drawing
The The raw material have JIS .ASTM.KS BS.AS.and so on Standard

Material:
1.4301/SUS304/AISI304/STS304
1.4306/SUS304L/AISI304/STS304L
1.4401/SUS316/AISI316/STS316
1.4404/SUS316L/AISI316L/STS316L
Wire Mesh Types:
Plain Woven wire mesh ,Dutch woven mesh ,sintered wire mesh

Microns Mesh of size :

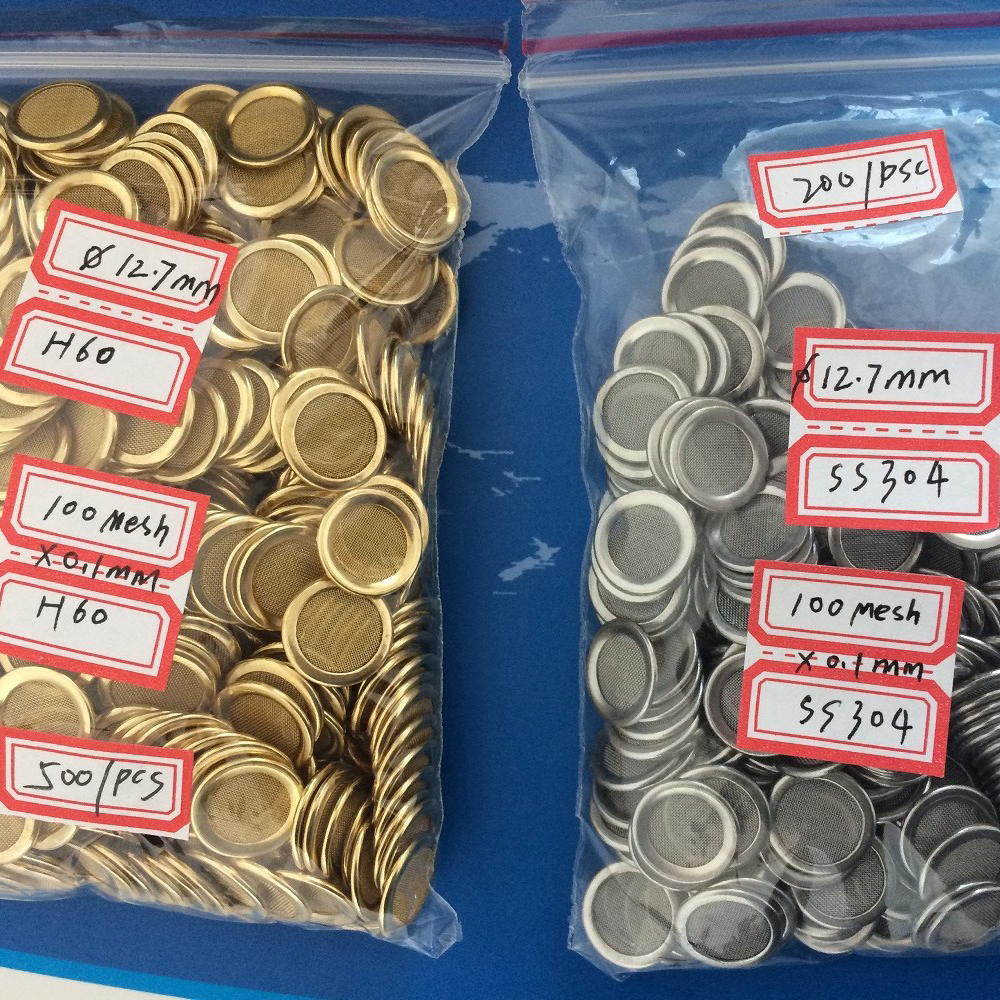

stainless steel Filter Disc Mesh of 12.7mm

550microns =  30 mesh screen
400 microns = 40 mesh screen
250 microns = 60 mesh screen
200 microns = 80 mesh screen
100 microns = 100 mesh screen
130 microns = 120 mesh screen
115 microns = 140 mesh screen
  75 microns = 200 mesh screen
  25 microns = Dutch woven 100 mesh x 780mesh
  20 microns = Three layer of sintered wire mesh

Eg:
Raw Material :1.4401/SUS316/AISI316/STS316
Wire Mesh Types:Plain woven wire Mesh
Filter Disc mesh of O-Diameter :12.7mm
Bound Edge Width :2mm
Plate of Thick : 0.5mm
Wire mesh :100 microns = 100 mesh x 0.10mm
Layer: single Layer
Total Thick:1.2mm
Qty :1000pcs

Then Can given to you best offer on time !
