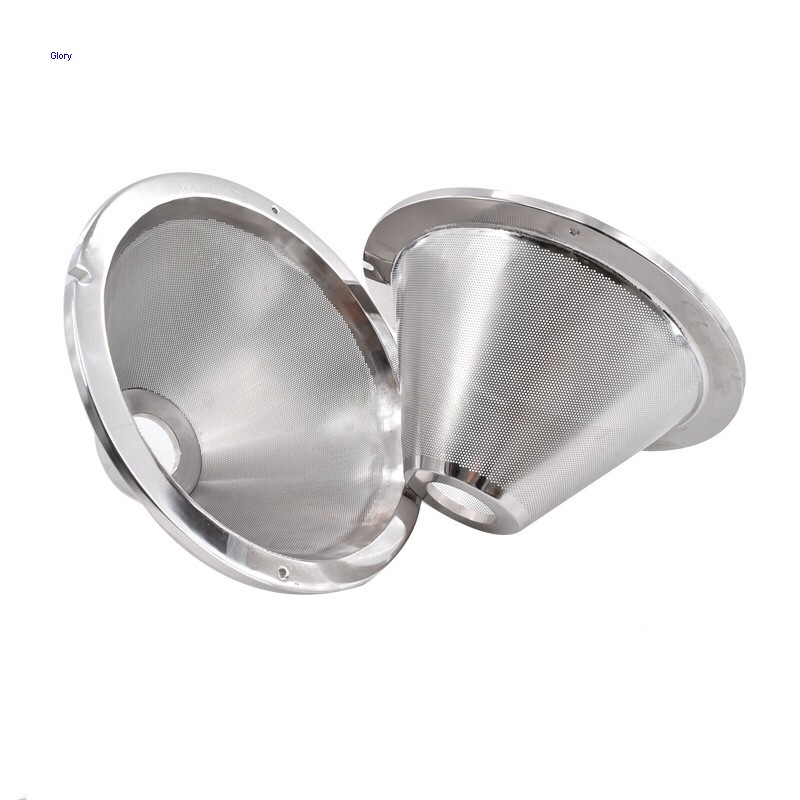

Cone Mill Sieves Screen

Cone Mill Sieves Screen

Cone Mill Sieves Screen



Our engineer can design ,processing and made all kinds of Cone Mill Sieves Screen as customs DWG drawing and sample offer.
The raw material have JIS .ASTM.KS BS.AS.and so on Standard. Let all international client got the Excellent products service in here.

Material:



1.4301/SUS304/AISI304/STS304
1.4306/SUS304L/AISI304/STS304L
1.4401/SUS316/AISI316/STS316
1.4404/SUS316L/AISI316L/STS316L.

Metal Mesh types :Plain woven.Perforated metal mesh

Layer:single,double,Three, multilayer.

Cone mill Screen by the types of sieves:

Round hole sieves – (Diameters of Ø 0.5 up to Ø 2.5 )
Most conical mills utilize round hole sieves for service to free-flowing materials including granules & powders, it depends on your process requirements.
Square holes – (Dimensions 3*3 to 10*10)
Square hole screens produce coarse particles. Applied in de-lumping & de-agglomeration wet masses.
Grater holes.reworking operations. In food industries, grater sieves can grate sweets, tough seeds, etc.
Consider hole:Consider sieves consist of a sheet with raised holes that are triangular-shaped or semi-oval.
Slotted holes:Now, slotted holes closely match the stadium shape (a rectangle with two semi-circles at each end). Slots are larger than square holes.
So they allow larger particles
through the screen than do square holes.

Cone Mill sieve mesh is Spare parts of  high speed granulator, fast granulator, quick granulator and grinding granulator in China.

To choose the suitable screen sieve  is very important working . Knife and the sieve mesh, and discharged through the sieve apertures. The size of ground particles can be adjusted by the sieve mesh number, the gap between rotary knife and sieve mesh, and the rotary speed.

Its ability to take a relatively wide size range of feed material and produce a similarly wide range of product, makes it ideal for intermediate sizing in both wet and dry granulations processes in the pharmaceutical industry.

Mesh of size :

550microns = 30 mesh screen
400 microns = 40 mesh screen
250 microns = 60 mesh screen
200 microns = 80 mesh screen
130 microns = 120 mesh screen
made of your offer and request.



Application:


pharmaceutical milling systems .
pharmaceutical & chemical machinery spares.
Water Purification and filtration
Food processing like dry milling,wet milling .deagglomeration and Reclaiming .
