Hydraulic Filter Assembly

Online Inquiry

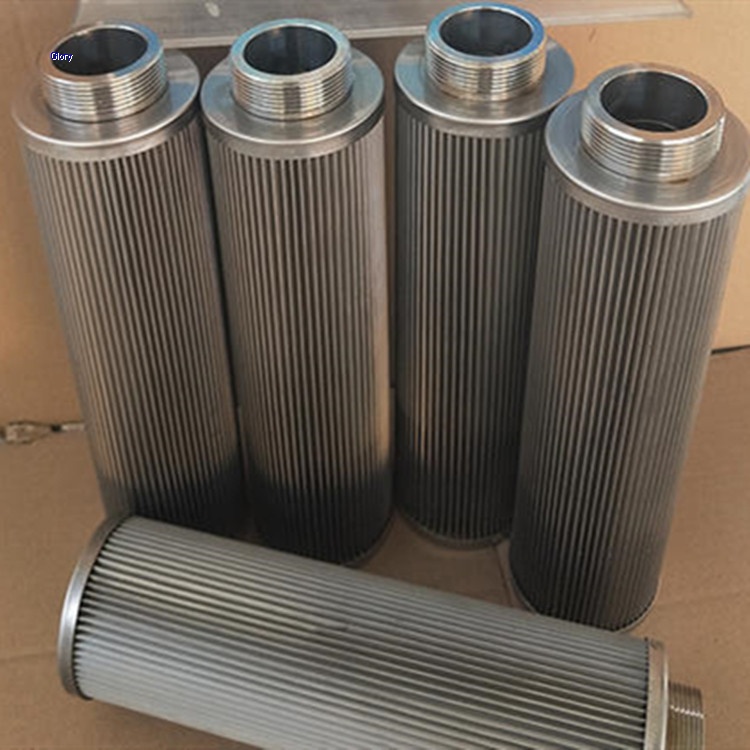

The Hydraulic Filter Assembly Series Strainer promotes a compact design with multiple configurations to fit the exact end use application.
The Standard Suction Strainer has a molded 304 Stainless Screen.A Stainless steel Body with 304 Stainless Screen is available.
Suction Strainers have a Female Friction Fit and are called out according to the size of a Female NPT fitting.
Suction Strainers have a true threaded Female NPT connection.

Raw Material of wire and Threading .

1.4301/SUS304/AISI304/STS304

1.4306/SUS304L/AISI304/STS304L

1.4401/SUS316/AISI316/STS316

1.4404/SUS316L/AISI316L/STS316L.

Size: Stainless steel Body Options 1/4, 3/8, 1/2, 3/4, 1, 1-1/2
Female NPT ,1/4, 3/8 Hose Barb
Stainless steel Body Options 1/2, 3/4, 1 Female NPT
Mesh normal size :60 mesh,70mesh,80 Mesh (Standard),
Layer : single layer or double layers are available

Single screen

Suction Filter  Thread 3/8” 60mesh
Suction Filter  Thread 3/4” 60mesh
Suction Filter  Thread 3/8” 60mesh
Suction Filter  Thread 1/8” 70mesh
Suction Filter  Thread 1/8” 70mesh
Suction Filter  Thread 1/8” 80mesh

Glory suction Strainer Elements are manufactured using stainless steel wire screen media. Suction strainer elements are only intended to protect hydraulic pumps against catastrophic failure caused by coarse contaminants. Suction strainer elements should be inspected and cleaned regularly. Suction strainer elements should not be used as the only filtration elements in a hydraulic system. Pressure filters and return line filters, with reasonable dirt holding capacity, must be installed to provide protection against component damage caused by fine contaminants.
