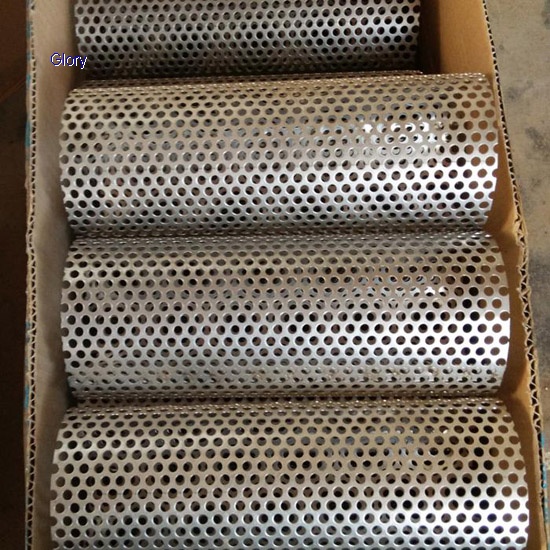

Perforated Cylinder Screen

Our vast range of perforated cylinders Screen to the Filter machines and Strainer equipment has grown considerably over the years., Our dedication to continually improving excellent quality has resulted in first class durable perforated Screen products.



Raw Material：



1.4301/SUS304/AISI304

1.4401/SUS316/AISI316.

1.4435/SUS316L/AISI316L.,

Nickel/Copper/Monel Alloys,etc.





Hole Style: Round,Square.slot.

Hole Pattern:straight line/stagger line

Aperture: 0.3mm--10mm

Center distance: 1mm--30mm

Degree :45.60.90

Plate thickness: 0.1mm--5mm

Outer Diameter :20mm to 1000mm

cylinder height :30mm to 1200mm

Working craft: The plate punching or perforated by machines,Then got th perforated mesh sheet ,Perforated metal tube connection can be butt welding or border overlapping spot welding ! Punching screen tube can be single perforated metal screen tube, also can be sintered with woven wire mesh,then made into tube.Perforated metal screen cylinder with high strength structure, micron filter rating and tube thickness can be sintered with customer requirement.



Application :

Gas filtration, liquid filtration, air filter, pharmacy industry, chemical industry, industrial filtration etc.
