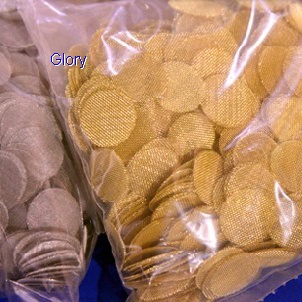

Single And Multilayer Filtration Screen

Our Single And Multilayer Filtration Screen feature various specifications to suit industrial and commercial requirements.The Wire Mesh raw material are uniformly cut as per desired shape and size and they are assembled properly and spot welded precisely to obtain optimal strength and alignment.We manufacture customized screens to meet our client’s specific requirements . The raw material have JIS .ASTM.KS BS.AS.and so on Standard. Let all international client got the Excellent products service in here.

Material:

1.4301/SUS304/AISI304/STS304
1.4306/SUS304L/AISI304/STS304L
1.4401/SUS316/AISI316/STS316
1.4404/SUS316L/AISI316L/STS316L.

Woven types :Plain woven.Dutch woven.sintered wire mesh
Shapes: Ring.Round.cone,
Layer:single,double,Three, multilayer.

Disc Diameter:
10mm-300mm .

Mesh of size :

400 microns = 40 mesh screen
250 microns = 60 mesh screen
200 microns = 80 mesh screen
130 microns = 120 mesh screen
115 microns = 140 mesh screen
75 microns = 200 mesh screen
25 microns= Dutch woven 100 mesh x 780mesh

Others size we can process and made of your offer and request.

Application:

Chemical fiber
Filters for Polyester fiber production
Gas and Oil
Water Purification and filtration
woven fabrics, color master batch,plastic and rubber, PVC granulation,
sheet extrusion, carbon fiber.Pressure line filters.
polymer, rubber, drugs, sugar mills, chemical .
