  • Replacement Basket Strainer Mesh
Replacement Basket Strainer Mesh

Replacement Basket Strainer Mesh

Replacement Basket Strainer Mesh

Replacement Basket Strainer Meshare a suitable cost filter solution designed  and processing to be used for the removal of inorganic contaminants. Basket strainers trap gross contaminants and are able to withstand a substantial amount of loading without failure. When used as a secondary filter the basket strainer is intended to capture contaminants that may enter the system as a result of a pipeline break or system malfunction.Our engineer processing the Replacement Basket Strainer Mesh with two types design.The one of types  with multiple layers of sinter stainless steel wire woven cloth, This is Replacement Basket Strainer Mesh offer one-piece construction for ease in handling.diffusion bonded together for increased
strength,corrosion resistance, and long life.The basket becomes the filter media, so there is no need for a perforated Screen for support or for a bag for filtration.
The another types with stainless steel wire woven cloth and perforated Screen for support construction.This is Replacement Basket Strainer Mesh offer is base cost rate than others
Material:
1.4301/SUS304/AISI304
1.4401/SUS316/AISI316.
1.4435/SUS316L/AISI316L.
Wire Mesh Material:Woven Fine wire mesh ,Perforated screen. sinter wire mesh
Sinter wire mesh : 10-150 micron absolute
Microns /Mesh : 10mesh,20mesh,30mesh ,40mesh .60mesh .80mesh,100mesh.
Perforated Screen :1/32", 3/64", 1/16", 1/8", 5/32", 3/16", 1/4", 3/8". 1/2".
Variants: with clamps or handle; design and special material individually according to customers

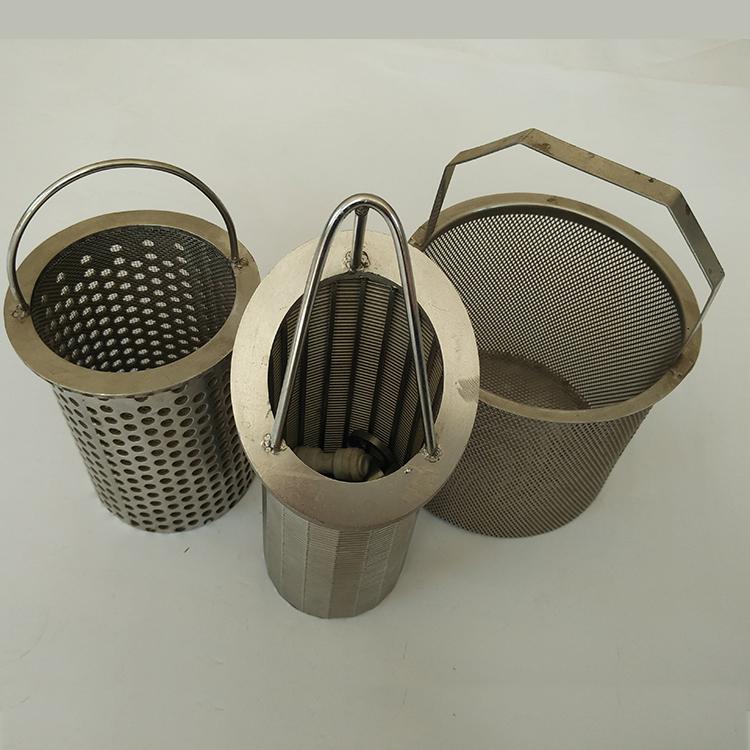

Replacement Basket Strainer Mesh1 Replacement Basket Strainer Mesh2 Replacement Basket Strainer Mesh3

 Application and feature:

  • Removal of sand, rock, grit and other inorganic contaminants to protect drip and micro-irrigation systems with fine mesh filtration

  • Industrial process water, incoming plant water, waste water clean up, industrial water for plant reuse

  • 80 psi standard operating pressure (high pressure systems available)

  • Flow ranges from 110 gpm

  • Can be used as a primary filter in specific applications

  • Can be used as a secondary filter to a sand media filter, centrifugal separator or other primary filtration system

  • For plant or equipment process water use primarily designed for the removal of inorganic material
