Pleated Filter Element

Pleated Filter Element

Pleated Filter Element

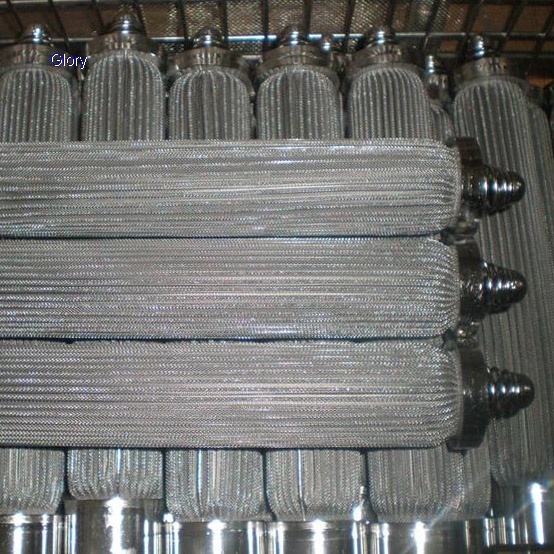

Pleated Filter Elementalso named sintered Pleated Filter Element  is made from five layers sintered wire cloth mesh , which include protective layer, control layer dispersion layer and two reinforcing mesh. The multi-layers sintered wire mesh are overlapped together before they are sintered in a vacuum sintering furnace. Then the sintered wire mesh is rolled into a cylindrical with components for two ends welded together. They can be processing into different shapes such as circular, cartridge, cone, pleats. Its filtration ration ranges from 2 micron to 200 micron.

Wire mesh Raw material and Media :
Standard stainless steel woven wire cloth
Standard stainless steel sintered fiber web
Standard stainless steel sintered wire mesh

Filter Element Model: PF-D/L-R
PF-Pleated Filter Element
D-Diameter
L-Length
R-Filter Rating.
Connector Connections: M20 ,M30, M36.M42,215,222.226

Features :
For enjoy the characteristics of long life span, easy cleaning,economical ,etc.

Advantages :

Considerable amount of dirt holding capacity;
The filtration area is precise to obtain desired quality and life.;
Low pressure drop due to high porosity;
Precise filtration rating.
Filtration rating available (micron) :  For 3.5.7.10.15.20.25.30.40.60. other Microm can As per customer requirement.
Any outline size available according to customer's requirement.

Application:

chemical fiber, petroleum, chemical industry, electric power, pharmaceutics, machinery, metallurgy, ceramics, dispose of sewage,
 foodstuff and beverage, cosmetic and other leading industrial sectors.
