Pump Inlet Filter screen

Online Inquiry

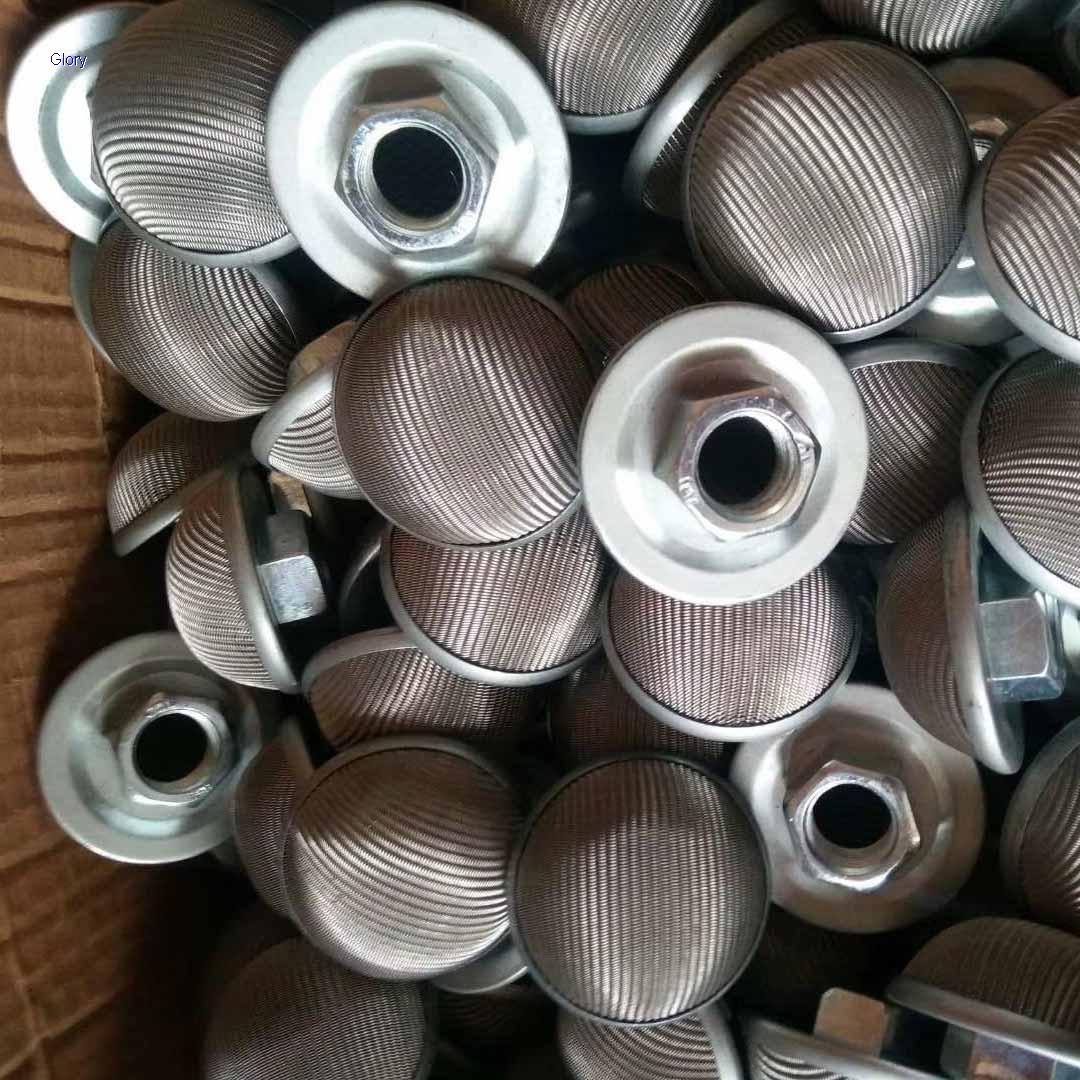

Pump Inlet Filter screen

Pump Inlet Filter screen is the hydraulic oil tank suction filter element,also known as hydraulic oil suction filter mesh.

The shapes types :plain top surface strainer Screen, pleated top surface strainer Screen ,bell shaped suction strainer screen,sloped suction strainer Screen,etc.

.Raw Wire Mesh Material:

1.4301/SUS304/AISI304/STS304

1.4306/SUS304L/AISI304/STS304L

1.4401/SUS316/AISI316/STS316

1.4404/SUS316L/AISI316L/STS316L.

Galvanised steel ends and other Metal Wire mesh .

Wire Mesh types :Plain woven mesh .Dutch woven mesh .
Mesh : 24 x110mesh and other size of Dutch woven mesh
Flow rate I/min :4-32

Thread BSP :1/4",3/8",1/2",3/4",1" and so on .
Threading Diameter: 22mm .19mm.30mm.25mm.36mm .46mm
Diameter:32mm.63mm,80mm.
High:13mm.14mm.16mm,17mm.20mm.25mm.33mm.35mm.43mm.52mm.

Used as power unit strainer,power pack filter,hydraulic station filter.
